Logging Services Truck

General Description:

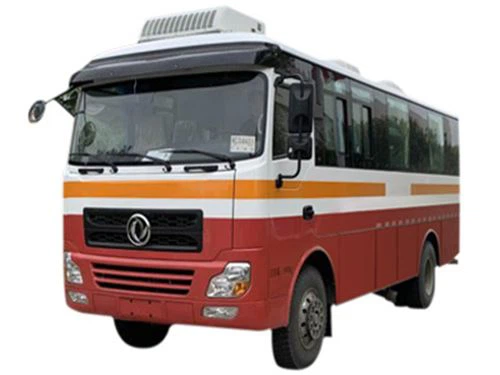

  1. LC5160XGC Logging service truck is modified on the basis of EQ6830ZT6D passenger car produced by Dongfeng Motor Corporation, 4×2 drive, wheelbase 4500mm, with Dongfeng Cummins D6.7NS6B230 diesel engine, national VI emission standard, power 170kW, maximum speed 90km/h;

Specifications

No. Items Parameters
1 Chassis model Chassis EQ6790Z6AC / Truck EQ6830ZT6D
2 Drive form 4×2
3 Dimensions 8350×2480×3233 (mm)
4 Wheelbase 4500 (mm)
5 ENGINE Model: D6.7NS6B230
Capacity: 225 kW / 2200 (r/min)
Max. torque: 900 N·m / 900-1700 (r/min)
6 Gearbox 17TZ08-00030
7 Gross mass 15430 (kg)
8 Full load mass 15950 (kg)
9 Max. speed 90 (km/h) (Electronic speed limit)
10 Approach angle 28°

Introduction

General Description:

  • LC5160XGC Logging service truck is modified on the basis of EQ6830ZT6D passenger car produced by Dongfeng Motor Corporation, 4×2 drive, wheelbase 4500mm, with Dongfeng Cummins D6.7NS6B230 diesel engine, national VI emission standard, power 170kW, maximum speed 90km/h.
  • Customized design of double or three cabin layout according to user needs.
  • 4-9 seats are installed in the front cabin; 6-8 sleeping berths are installed in the middle cabin; instrument transportation devices and tool cabinets for production logging are installed in the rear cabin.
  • With 3440Kcal/1400Kcal capacity ceiling air conditioner from Coleman USA for operation at high and low temperatures.
  • One or two safety escape windows on the top.
  • Instrument frames for logging instruments with airbag compression type or mechanical compression type are designed at the tail and chassis sub-frame.
  • Equipped with wardrobe, toolbox, microwave oven, first aid kit, DC water dispenser, etc.
  • Customized modification for perforating equipment and radioactive source transport vehicles per users’ needs.
  • This model is one of the best choices for supporting service vehicles for slickline and wireline logging operations in oil fields.

Specifications

Max working pressure 100MPa
Max working temperature 150°C
OD Φ38mm
Length 4.5m
Recommended speed Point measurement
Input power DC90~150V (90~150)VDC
Communication Bit error rate ≤ 10-5 (about 5km cable)
Manchester Code MII half-duplex uplink 5.729, 11.458, 22.916kbps
AMI duplex uplink 50, 71, 100, 143,200kbps, downlink 300bps
Working current 100mA (neutron tube is not working) / 350mA (neutron tube is working)
Specifications of each tool
The natural gamma logging tool Measuring range: 0~5000cps, allowed error: ±7%
Pressure measuring tool Measuring range: 0~100MPa, allowed error: ±0.1MPa
Temperature measuring tool Measuring range: (0~150)°C, allowed error: ±1°C

Oxygen Activation Logging

Not affected by rock property, permeability, hole size of perforation, dirt objects, no radiation hazard, no environment pollution.



Introduction


Oxygen Activation Logging

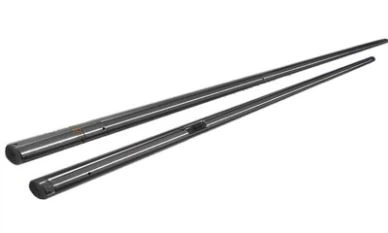

SITAN MP38-WFL Oxygen Activation Logging tools reflect water-flowing conditions inside the oil pipe, in annular space, and outside the oil pipe by detecting the tine spectrum of activation gamma ray. It can calculate flow rate and volume by analyzing the time spectrum of oxygen.


Application


  1. 1. Measure injection profiles in general positive injection wells, general anti-injection wells, oil-enclosed injection wells, and lay water injection wells.
  2. 2. Measure production profile in production wells.
  3. 3. Measure injection profile in polymer and ASP flooding fluids.
  4. 4. Looking for channeling outside the tube to determine the direction of flow and velocity of channeling.
  5. 5. Check the mechanical integrity of downhole tools such as casing leakage, packer leakage, etc.
  6. 6. Monitor leakage points of casing and packers, etc.
  7. 7. Find out casing hole problems and check the effectiveness of secondary or tertiary oil displacement.

Working principle

  • Radiated by higher than 10.2 MeV neutron energy, the oxygen in the water of nuclear power is activated into a radioactive nitrogen nucleus, which has a half-life of 7.13s. Through b-decay and emitting 6.13 MeV and 7.12 MeV energy gamma rays, high-energy neutrons, and high-energy gamma rays can penetrate wellbore fluid, tubing, casing, and cement ring, belonging to the non-contact flow measurement methods (as the following picture).
