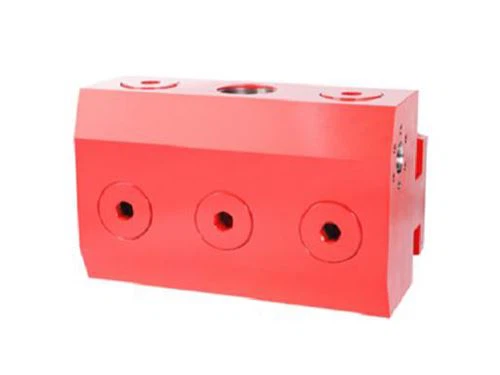

Frac Pump Fluid End

Frac pump fluid ends are standardized products that are compatible with SPM 2250 power ends produced by multiple fracturing equipment manufacturers in the world.

Specifications

Working Temperature (-40~85)°C
Nominal Pressure (0~32) MPa
Adjustable Valve Pressure (0~4) MPa
Control Valve Height ≤0.96m
Control Valve Weight ≤40Kg
Control Valve Adjustment Error 1%
Quickly Turn Off Time (1~2) second
Flange Size DN50
Flange Spacing 375mm
Seat Size ø25mm
Control Valve Stroke 0~25mm
Valve Core Seat Material 316 Welding Alloy
Valve Body Material 304 Stainless Steel
Protection Grade IP65
Explosion-proof Grade CSA Class I, Division 2, Group A, B, C, D
Communication Mode GPRS
Power Supply Solar Energy 600Ah/600W

Introduction

Frac pump fluid ends are standardized products that are compatible with SPM 2250 power ends produced by multiple fracturing equipment manufacturers in the world.


Specialty

  • Able to work under certain working conditions, including intermittent regular oilfield, unconventional shale oil and gas, tight oil and gas, coalbed methane Our fluid end is able to work six days a week, no more than 10 hours per day. The fluid end s material has passed the high-pressure test over 500MPa and is able to fit under different ranges of pressure and conditions. The rated working pressure represents the maximum output pressure from the power end.

  • Material Performance: SAE 4330V, 4330M alloy steel and 17-4PH, 15-5PH stainless steel for option Advantage: Fluid end made by integral forging, with high-pressure resistance, anti-scouring, and corrosion resistance performance Max. Pressure: 140.6MPa Max. Flow: 3669L/min Application: Acidification treatment, high sand ratio, high pressure, large displacement, etc. fracturing work, suitable for GD2250, OFM2000, OPI-1800 and etc.

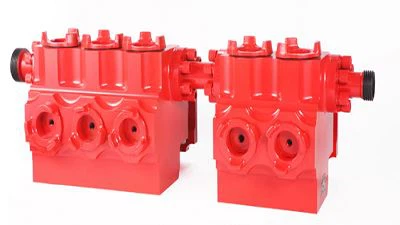

Cementing Pump Fluid End

Cementing pump fluid ends are standardized products of our company for matching with the mode 600 power ends of fracturing truck produced by several fracturing equipment in the world.

Specifications

Plunger Diameter (In) 50 SPM 120 SPM
Displacement (L/min) Pressure (MPa) Displacement (L/min) Pressure (MPa)
2 1/2 72 140.5 174 139.1
2 3/4 87 116.1 212 114.9
3 106 97.6 250 96.6
3 1/2 140 71.7 341 71
4 186 54.9 447 54.3
4 1/2 235 43.4 564 42.9
Plunger Diameter (In) 200 SPM 300 SPM
Displacement (L/min) Pressure (MPa) Displacement (L/min) Pressure (MPa)
2 1/2 288 83.4 435 55.6
2 3/4 352 69 526 46
3 416 57.9 625 38.6
3 1/2 568 42.6 852 28.4
4 742 32.6 1113 21.7
4 1/2 939 25.8 1408 17.2
Plunger Diameter (In) 450 SPM
Displacement (L/min) Pressure (MPa)
2 1/2 651 37.1
2 3/4 787 30.6
3 939 25.8
3 1/2 1276 18.9
4 1669 14.5
4 1/2 2112 11.4

Introduction

  • Our Cementing Pump Fluid Ends are standardized products of our company for matching with the mode 600 power ends of fracturing trucks produced by several fracturing equipment in the world.
  • Material Performance: SAE 4330V, 4330M alloy steel and 17-4PH, 15-5PH stainless steel for option.
  • Advantage: Fluid end made by integral forging, with high-pressure resistance, anti-scouring, and corrosion resistance performance.
  • Max. Pressure: 140.5MPa
  • Max. Flow: 2112L/min
  • Application: Acidification treatment, high sand ratio, high pressure, large displacement, etc. fracturing work

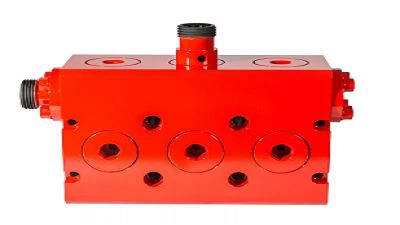

    • Fluid End Of Cementing Pump

    The fluid end use alloy steel forging, it has the advantage of small volume, light weight, acid and alkali resistance, high pressure resistance, impact resistance.

    Specifications

    No Description P/N Qty. No Description P/N Qty.
    0 Fluid End Assembly 5ZF40AN00(7) 22 22 Rod Plunger 5ZF40E22 5
    1 Fluid End 5ZF40AN01(7) 1 23 Gasket, Plunger Plug 5ZF40E23 5
    2 Seal, Valve Seat 5ZF40E02 10 24 Plunger Plug 5ZF40E24 5
    3 Valve Seat 5ZF40E03 10 25 Valve Stop 5ZF40E25 10
    4 Insert 5ZF40E04 10 26 Bushing, Valve Stop 5ZF40E26 5
    5 Valve 5ZF40E05 10 27 Spring Retainer 5ZF40E27 5
    6 Spring 5ZF40E06 10 28 Bushing, Spring Retainer 5ZF40E28 10
    7 Discharge Cover 5ZF40AN07 5 29 Pressure Spring 5ZF40E29 5
    8 Discharge Retainer 5ZF40AN08 5 30 Suction Cover 5ZF40AN30 5
    9 Seal, Discharge Cover 5ZF40AN09 6 31 Seal, Suction Cover 5ZF40AN31 5
    10 Circlip, Discharge Cover 5ZF40AN10 6 32 5.25" Retainer 5ZF40E50 5

    Introduction

  • Material Performance: SAE 4330V, 4330M, 30CrNi3.5MoV alloy steel and 17-4PH, 15-5PH stainless steel for option.
  • Advantage: Fluid end made by integral forging, with high-pressure resistance, anti-scouring, and corrosion resistance performance.
  • Max. Pressure: 140.5 MPa
  • Max. Flow: 1624 L/min
  • Application: Acidification treatment, high sand ratio, high pressure, large displacement, etc
