WATER CUT METER

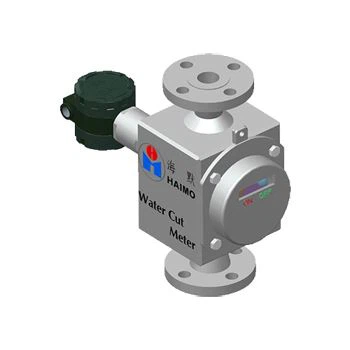

Water Cut Meter (WCM) is a Dual-Energy Gamma Meter (DGM) and determines the Water-Liquid Ratio (WLR) of three-phase (gas, water and oil) flow with Gas Volume Fraction (GVF) up to 100%. The meter is independent of state of flow, phase miscibility such as emulsion, heavy oil and phase transition.

Specifications

GVF Range Measurements Uncertainty
0~95% WLR 2% Abs.
95~100% WVF (water volume fraction) 0.5% Abs.

Introduction

Water Cut Meter (WCM) is a Dual-Energy Gamma Meter (DGM) and determines the Water-Liquid Ratio (WLR) of three-phase (gas, water, and oil) flow with Gas Volume Fraction (GVF) up to 100%. The meter is independent of the state of flow, phase miscibility such as emulsion, heavy oil, and phase transition.


Feature

  • 1. Accurate measurements of Water-Liquid Ratio in three-phase flow
  • 2. Independent of emulsion effect, phase transition, or viscosity
  • 3. Nonintrusive inline meter
  • 4. Remote operation and data acquisition
  • 5. No moving parts, low maintenance
  • 6. Small footprint and lightweight
  • 7. Simple installation and safe operation
  • 8. Zero or low-pressure loss
  • 9. Low power consumption

Application

  • 1. Water-Liquid Ratio (water cut) monitoring
  • 2. Onshore and offshore

Benefits

  • 1. Real-time and continuous measurements
  • 2. Low capital and operation costs
  • 3. Remote and automated operation


Exempted Source Water Cut Meter

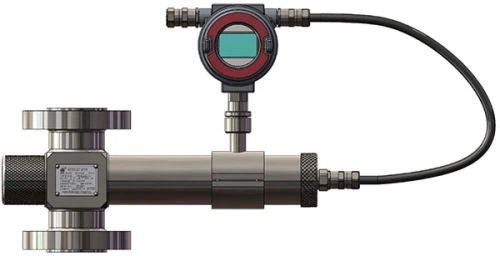

Exempted Source Water Cut Meter (XC-WCM) is a Dual-Energy Gamma Meter (DGM) equipped with a gamma source of extremely low activity, classified as exempted category by IAEA. XC-WCM determines the Water-Liquid Ratio (WLR) of three-phase (gas, water and oil) flow with Gas Volume Fraction (GVF) up to 90%, from which the water cut. The meter is independent of state of flow, phase miscibility such as emulsion, heavy oil and phase transition.

Specifications

Parameter Specification
Size 1 ~ 4 inch
DN50 Meter Dimension 0.55m (L) × 0.16m (W) × 0.38m (H)
Material 316/316L Stainless Steel (Other Alloys Optional)
Electrical Certification Ex dB IIB T4/T6
Ingress Protection IP 65/66
Power Consumption < 2.5 W
Operating Temperature -50 ~ 100 deg. C
Installation Vertical Installation, Flow from Bottom to Top
Max Operating Pressure 25 MPa (1500#)
Gamma Sensor Exempted Source: Ba-133 Gamma Source
Source Radioactivity: 9 × 105 ; Bq
Half-life: 10.55 years
External Leakage Dose Level: Meets Relevant Specifications
Output: 4~20mA Current Signal / Modbus RS485

Introduction

Exempted Source Water Cut Meter (XC-WCM) is a Dual-Energy Gamma Meter (DGM) equipped with a gamma source of extremely low activity, classified as an exempted category by IAEA. XC-WCM determines the Water-Liquid Ratio (WLR) of three-phase (gas, water, and oil) flow with Gas Volume Fraction (GVF) up to 90%, from which the water is cut. The meter is independent of the state of flow, phase miscibility such as emulsion, heavy oil, and phase transition.


Feature

  • Accurate WLR measurements of three-phase flow up to 90% GVF
  • Independent of emulsion effect, phase transition, or viscosity
  • Inline meter, nonintrusive
  • Remote operation and data acquisition
  • No moving parts, low maintenance
  • Small footprint and lightweight
  • Simple installation and safe operation
  • Zero to low-pressure loss
  • Low power consumption
  • Exempted source, less to no routine radioactive source management process

Application

  • 1. Water cut monitoring
  • 2. Onshore and offshore

Benefits

  • Real-time and continuous measurements
  • Low capital and operation costs
  • Remote and automated operation
