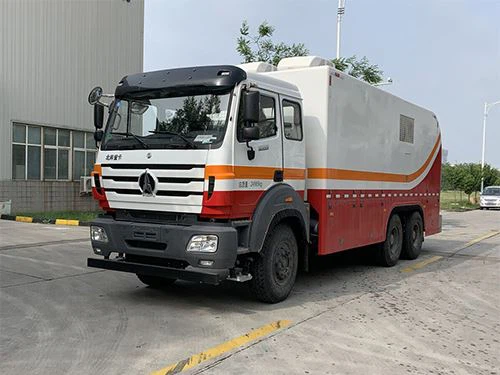

Well Logging truck General Description

LC5250TCJ Well logging truck is mainly used for logging works in the oil fields.

Feature

• 1. Beiben ND1250BD6J7Z01 class II chassis, China IV emission standard, 6*4 drive, single row cab, and Fast 12JS160TA gearbox with superior performance.
• 2. Double drums: anti-magnetic steel, coaxial.
• 3. Winch: full hydraulic transmission.
• 4. The whole carriage adopts an aluminum alloy skeleton, straight grain stainless steel plate, sandblasting aluminum alloy plate.
• 5. Heat preservation treatment is carried out on the six sides of the operating cabin.
• 6. The heating system and cold-warm air conditioning are installed on the top of the vehicle, making the working environment comfortable.
• 7. Dupont paint for a durable appearance in harsh environments.

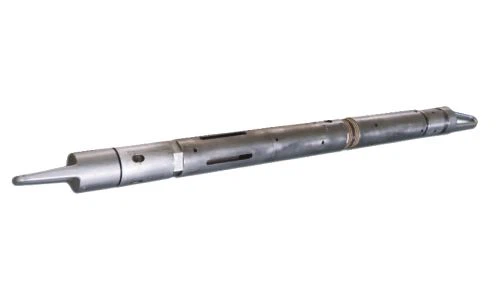

Tension/Temperature/Mud Resistivity Logging Tool

1. Real time measurement of downhole tension, temperature and mud resistivity.

2. Maximum operating temperature 175℃, maximum operating pressure 140MPa.

Introduction

TSS89-200D tension/temperature/mud resistivity logging tool measures real time downhole tension, temperature and mud resistivity. It monitors and controls downhole tool string tension during logging and real-time cable head tension when logging string gets stuck. STSS89-200D tension/temperature/mud resistivity logging tool is also used during drill pipe conveyed or coiled tubing conveyed logging. STSS89-200D tension/temperature/mud resistivity logging tool accomplishes continuous measurement for mud resistivity, provides a basis for wellbore mud parameters analysis, and monitors wellbore temperature changes.

Features

• 1. SITAN QZJ-100 gas well downhole intelligent throttle can achieve wireless controlling, changing the opening of the gas nozzle, no need to fish gas nozzle repeatedly, saving lots of labor and mechanical costs.
• 2. Wireless communication. If downhole history data is needed during production, historical data can be extracted by putting down the communication section to docking;
• 3. One-time construction, without fishing operations, saving a lot of manpower and resources;
