Open Hole Logging

  • 1. Accurate reflection of formation resistivity changes.
  • 2. Maximum operating temperature 175°C, maximum operating pressure 140 MPa.

    • Specifications

    Item STSX89-200D
    Max. Working Pressure 140 MPa (20,305 psi)
    Max. Working Temperature 175°C (347°F) 2 hours
    Outside Diameter 92 mm (3.622 in)
    Logging Speed ≤1500 m/h
    Measurement Range 0.2∼40000 Ω·m
    Measurement Accuracy ±5%
    Vertical Resolution 0.61 m
    Depth of Investigation SrtnDp: 1.397 m
    GrtnDp: 1.067 m
    Enhsh: 0.787 m
    Stdsh: 0.457 m

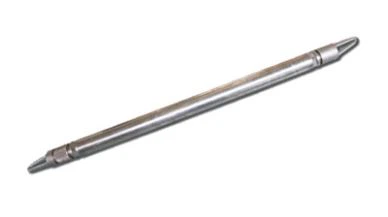

    Dual Lateral Logging Tool


    Introduction:


    Dual Lateral Logging Tool

    STSX89-200D dual lateral logging tool adopts new technologies such as multi-layer shielding, constant power, and multiple feedback control, which improve formation resistivity measurement range and accuracy. There are two modes each for deep and shallow lateral measurements, including shallow standard mode StdSh, shallow enhanced mode EnhSh, deep standard mode SrtnDp, and deep Groningen mode GrtnDp. STSX89-200D dual lateral logging tool accurately reflects formation resistivity changes, ensures correct logging under ordinary wellbore conditions, and better reflects formation intrusion zone under large wellbore and high salinity well conditions. Deep Groningen mode not only corrects the Groningen effect but also accurately measures the formation resistivity near casing ends.
