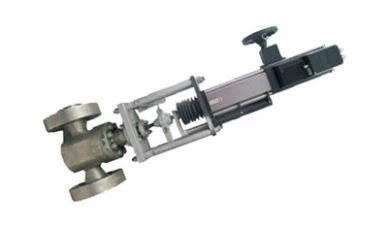

Wellhead Automatic Control System for Gas Well

Wellhead Automatic Control System For Gas Well SITAN JYF-100 wellhead automatic control system is specially designed for natural gas well. is to complete the operation of intermittent well opening and closing of gas well automatically and the overpressure protection function of wellhead.

Specifications

Working Temperature (-40~85)°C
Nominal Pressure (0~32) MPA
Adjustable Valve Pressure (0~4) MPA
Control Valve Height ≤0.96m
Control Valve Weight ≤40Kg
Control Valve Adjustment Error 1%
Quickly Turn Off Time (1~2) second
Flange Size DN50
Flange Spacing 375mm
Seat Size ø25mm
Control Valve Stroke 0~25mm
Valve Core Seat Material 316 Welding Alloy
Valve Body Material 304 Stainless Steel
Protection Grade IP65
Explosion-proof Grade CSA Class I, Division 2, Group A, B, C, D
Communication Mode GPRS
Power Supply Solar Energy 600Ah/600W

Introduction

Exempted Source Water Cut Meter (XC-WCM) is a Dual-Energy Gamma Meter (DGM) equipped with a gamma source of extremely low activity, classified as an exempted category by IAEA. XC-WCM determines the Water-Liquid Ratio (WLR) of three-phase (gas, water, and oil) flow with Gas Volume Fraction (GVF) up to 90%, from which the water is cut. The meter is independent of the state of flow, phase miscibility such as emulsion, heavy oil, and phase transition.


Feature

  • 1. SITAN JYF-100 gas well wellhead automatic control system mensimulasikan proses sumur buatan, mengontrol derajat pembukaan katup secara otomatis, menyelesaikan pembukaan sumur gas, dan secara efektif menghindari penyumbatan akibat pembekuan.
  • 2. SITAN JYF-100 memastikan keselamatan pipa, menggantikan katup pelindung keselamatan, dan menutup dalam waktu 2 detik saat tekanan pipa abnormal terjadi. Sistem ini dapat dipantau dari jarak jauh dan memungkinkan operasi tanpa pengawasan.
  • 3. Sistem ini memerlukan perawatan minimal dan secara signifikan mengurangi kebutuhan tenaga kerja manual.
